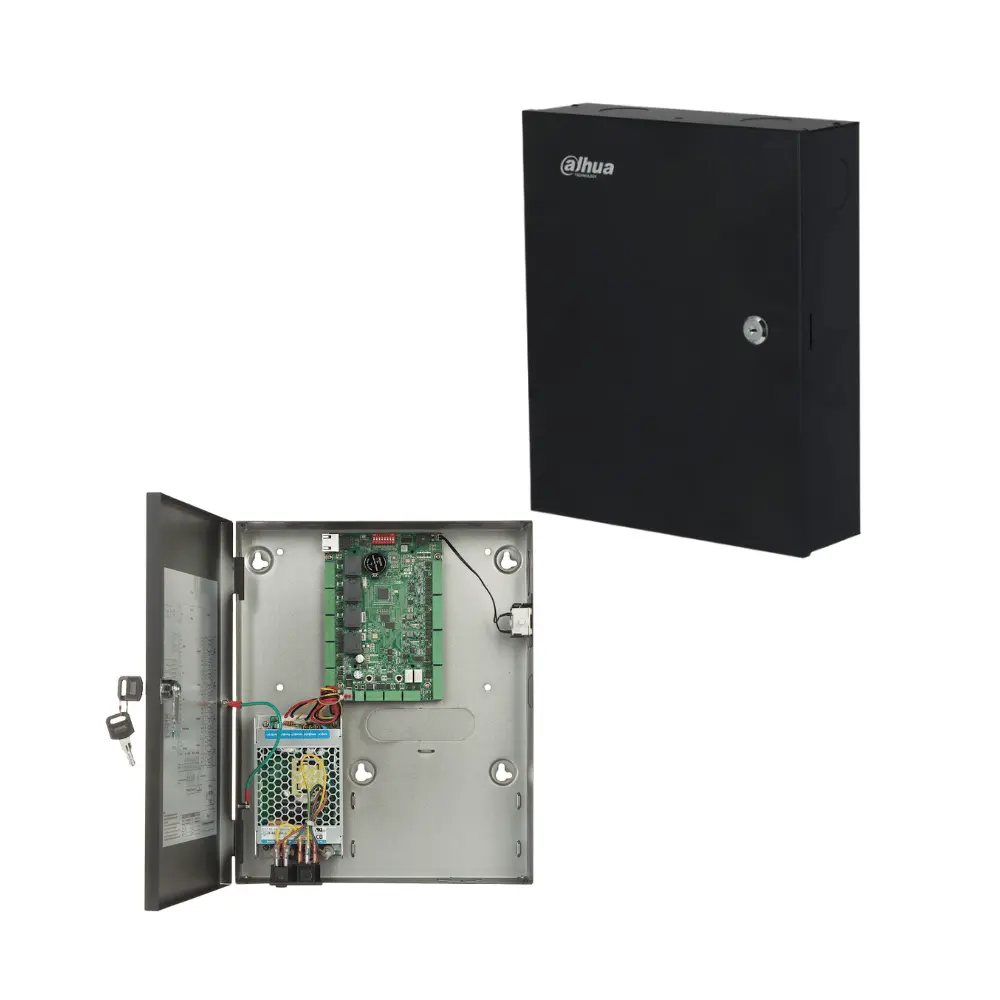

Access Controller
| Case design | Cabinet |
| Maximum number of doors | 4 door(s) |
| Built-in UPS | No |
| Interface | RS-485 |
| Supported network protocols | IPv4; TCP; UDP |
| Number of users | 100000 user(s) |
| Exit button supported | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Number of built-in relays | 4 |
| Wiegand interface | Yes |
| Number of Wiegand readers supported | 4 |
| Alarm input channels | 6 |
| Active tampering alarm | Yes |
| Power consumption (typical) | 39.6 W |
| Power consumption (no load) | 0.8 W |
| AC voltage range | 100 - 240 V |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 5 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | 5 - 95 °C |
| Width | 272 mm |
| Depth | 90 mm |
| Height | 337 mm |
| Package width | 472 mm |
| Package depth | 163 mm |
| Package height | 352 mm |
| Package weight | 3.5 kg |
